Hayward

HeatPro® In Ground Heat Pump with Square Platform 140K BTU

Product #:HAY-15-5025

Mfg. Part #:HP21404T

  • This product is obsolete.
  • The superceded product was not found.

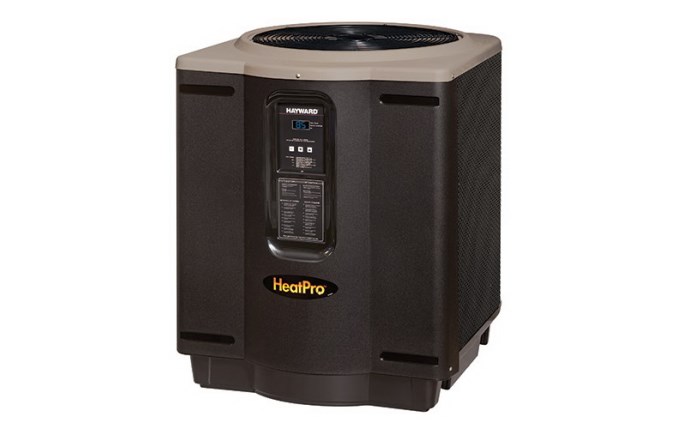

Hayward HeatPro® HP21404T H-Series Digital Heat Pump; 140K BTU, 230V, Stainless Steel Housing

Hayward

HeatPro® In Ground Heat Pump with Square Platform 140K BTU

Product #:HAY-15-5025

Mfg. Part #:HP21404T

Description

Hayward HeatPro® HP21404T H-Series Digital Heat Pump; 140K BTU, 230V, Stainless Steel Housing. Don't let cool water temperatures limit your swimming enjoyment. High performance, energy-efficient Hayward® HeatPro® heat pumps quietly and economically maintain your ideal water temperature at all times. They let you start your swim season earlier a

Documents

Feature Bullets

  • Titanium counter-flow heat exchangers for unrivaled and uncompromising performance even under the harshest conditions
  • Ultra gold corrosion-resistant evaporator fin for extreme durability, especially in coastal environments
  • Heavy duty, super quiet scroll compressors
  • Durable injection molded UV-resistant body panels that are impervious to rust and deterioration
  • Stainless steel hardware and polyethylene screen to protect the evaporator coil and maintain peak efficiency
  • Lightweight, compact and easy to install and service, making them ideal for new pools

    • Branch Availability

    content loaded

    Specifications

    • BrandHayward
    • ApplicationInground, Pool
    • Shipping Dimensions40 x 31.5 x 50 inch
    • BTU Output140000
    • Cabinet Depth34 inch
    • Cabinet Height37 inch
    • Cabinet Width44 inch
    • ChannelNone
    • ColorBlack
    • Commercial, Residential, or ProfessionalCommercial, Residential
    • Control TypeDigital Electric, Dual Thermostat
    • Each Product Weight327 pound
    • Flow Rate Max75 gal/min
    • Flow Rate Min30 gal/min
    • Frequency Rating (Hz)60
    • Green or Energy Efficient ProductTrue
    • Heat Exchanger MaterialStainless Steel
    • Housing MaterialStainless Steel
    • Master Carton Quantity1
    • Min Circuit Ampacity36 amperage
    • Minimum Sell Quantity1
    • Pallet Quantity2
    • PhaseSingle
    • Refrigerant ModelR410A
    • Voltage230V
    • Product Weight320 pound
    • UPC Code0610377124836

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

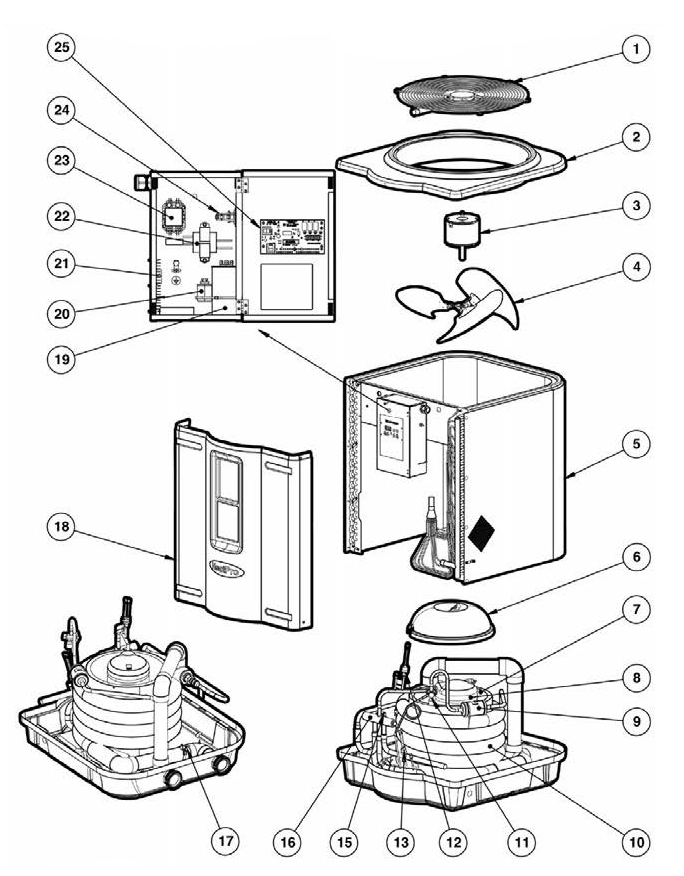

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    SMX305000004
    SUM-151-1079
    SMX305000004 GRID-FAN 24 IN
    Product #: SUM-151-1079
    Mfg #: SMX305000004
    2
    2
    SMX309077011
    SUM-151-1016
    Taupe Top Panel with Guard for HeatPro and Summit XL Pumps
    Product #: SUM-151-1016
    Mfg #: SMX309077011
    3
    3
    SMX300055036
    SUM-151-1092
    Summit HeatPro Motor Fan 1/3HP 825 RPM
    Product #: SUM-151-1092
    Mfg #: SMX300055036
    4
    4
    SMX303140003
    SUM-151-1089
    Summit HeatPro Lau Blade 22/3/30
    Product #: SUM-151-1089
    Mfg #: SMX303140003
    5
    5
    SMX305099004
    SUM-151-1057
    7 Ton Evaporator for HeatPro HP21404T and HP21404TC Heaters
    Product #: SUM-151-1057
    Mfg #: SMX305099004
    -
    -
    SMX24024408
    HAY-151-6601
    Summit Bent Coil
    Product #: HAY-151-6601
    Mfg #: SMX24024408
    -
    -
    SMX24024414
    SUM-151-1041
    SMX24024414 HEATPRO 31x1 BENT COIL REPLACEMENT
    Product #: SUM-151-1041
    Mfg #: SMX24024414
    6
    6
    SMX01024512
    Plastic Dome
    Product #:
    Mfg #: SMX01024512
    7
    7
    SMX26024728
    Acoustic Panel for HP21404T, HP21254T and HP31204T
    Product #:
    Mfg #: SMX26024728
    -
    -
    SMX26024537
    Acoustic Panel for HP31154T, HP21004T and HP21124T
    Product #:
    Mfg #: SMX26024537
    8
    8
    SMX11017204
    SUM-151-1103
    SMX11017204 HRH056U1LP6 COMPRESSOR
    Product #: SUM-151-1103
    Mfg #: SMX11017204
    -
    -
    SMX11024201
    SUM-151-1053
    SMX11024201 COMPRESSOR HLJ083T1LP6
    Product #: SUM-151-1053
    Mfg #: SMX11024201
    -
    -
    SMX301150010
    SUM-151-1052
    SMX301150010 COMPRESSOR HLH068T1LP6
    Product #: SUM-151-1052
    Mfg #: SMX301150010
    -
    -
    SMX11012754
    SUM-151-1030
    Compressor for HeatPro HP31204T Heat Pump
    Product #: SUM-151-1030
    Mfg #: SMX11012754
    -
    -
    SMX11012751
    SUM-151-1032
    Single Phase Scroll Compressor 61500 BTUH 5 HP
    Product #: SUM-151-1032
    Mfg #: SMX11012751
