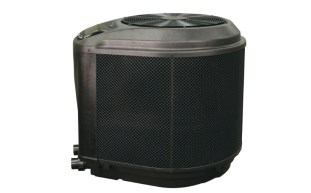

JE Digital Heat Pump 119K BTU 230V 60Hz

Product #:AEH-15-1033

Mfg. Part #:JE2500T

  • This product is obsolete.
  • The superceded product was not found.

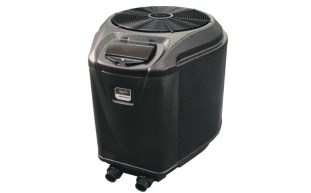

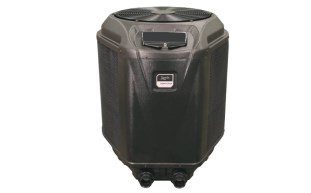

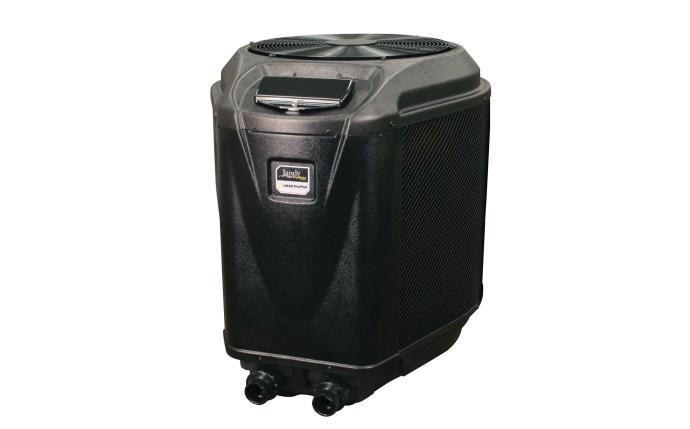

JE2500T Heat Pump, 119000 BTU, 1-Phase, 230 V, 60Hz, AEH-15-1033, Digital Electric Control.

Jandy

JE Digital Heat Pump 119K BTU 230V 60Hz

Product #:AEH-15-1033

Mfg. Part #:JE2500T

Description

High performance, energy efficient pool/spa heating. The Jandy Pro Series JE Series line of premium pool heat pumps delivers maximum energy efficiency and reliability. Working efficiently, JE pool heat pumps absorb free heat from the air and transfer it to the water, making the heating process ecological and cost-effective.

Documents

Feature Bullets

  • Ultra-Efficient - Featuring a premium titanium heat exchanger, JE Series heat pumps provide superior hydraulic flow for maximum energy savings
  • Superior Control - Easy-to-operate dual thermostats (pool/spa)

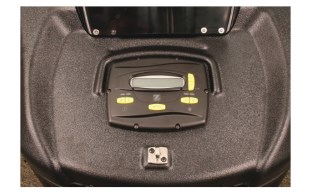

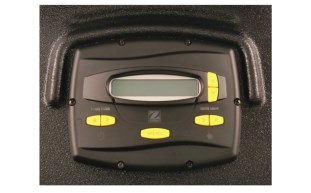

  • User-Friendly - Features advanced digital control to enable self diagnostics, multilingual capability, and an auto-heat feature, when used in conjunction with Aqualink® control systems, to maintain your pool’s temperature automatically and efficiently 24 hours per day
  • Versa Plumb®-Ready - All JE Heat Pumps are Versa Plumb®-ready, allowing you to achieve up to 50% more hydraulic efficiency for maximum energy savings

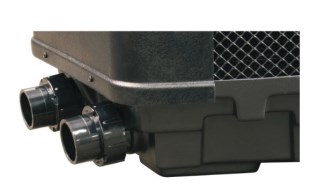

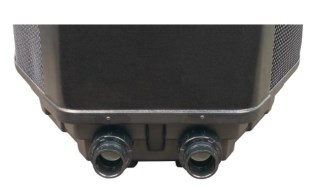

  • Includes 2 and 2 1/2" Unions
  • Environmentally Friendly (410A Refrigerant)

    • Branch Availability

    content loaded

    Specifications

    • BrandJandy
    • ApplicationPool
    • Shipping Dimensions45.25 x 38.25 x 51 inch
    • BTU Output119000
    • Cabinet Depth43 inch
    • Cabinet Height40 inch
    • Cabinet Width36 inch
    • Commercial, Residential, or ProfessionalCommercial, Residential
    • Compressor TypeScroll
    • Control TypeDigital Electric
    • Each Product Weight324 pound
    • Electrical Input5.34 kilowatts
    • Flow Rate Max48 gal/min
    • Flow Rate Min48 gal/min
    • Frequency Rating (Hz)60
    • Green or Energy Efficient ProductTrue
    • Heat Exchanger MaterialTitanium
    • Housing MaterialABS or acrylonitrile butadiene styrene
    • Master Carton Quantity1
    • Maximum Circuit Breaker60 amperage
    • Min Circuit Ampacity41.81 amperage
    • Minimum Sell Quantity1
    • Pallet Quantity1
    • PhaseSingle
    • Refrigerant ModelR410A
    • Voltage230V
    • UPC Code052337063937

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

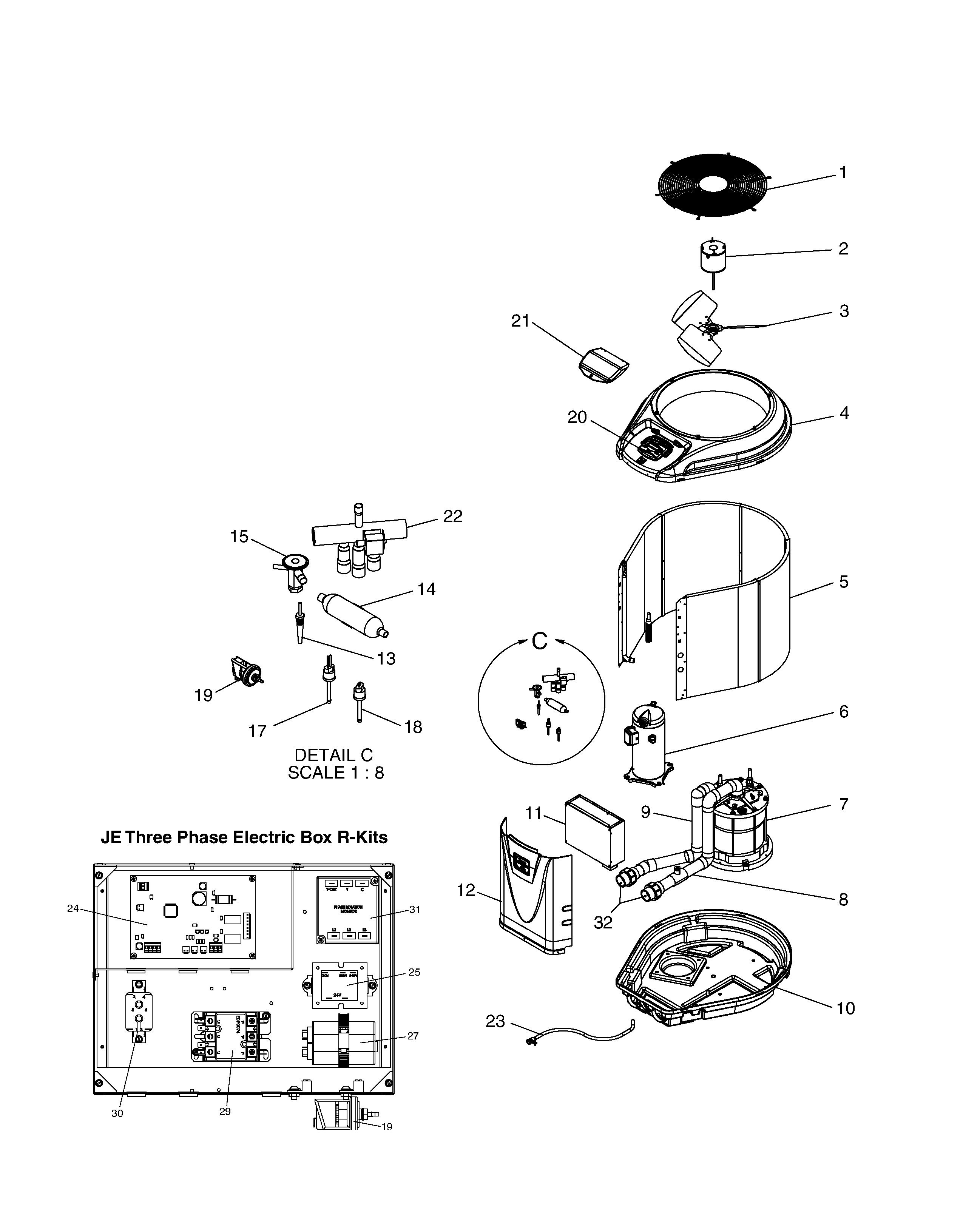

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    R0571700
    AEH-151-1100
    R0571700 1500 JE HEAT PUMP FAN GRILLE
    Product #: AEH-151-1100
    Mfg #: R0571700
    1
    1
    R0571800
    AEH-151-1101
    R0571800 2000/2500/3000 JE FAN GRILLE
    Product #: AEH-151-1101
    Mfg #: R0571800
    2
    2
    R0571900
    AEH-151-1102
    JE Fan Motor for Model 1500 Heat Pump
    Product #: AEH-151-1102
    Mfg #: R0571900
    2
    2
    R0572000
    AEH-151-1103
    JE Fan Motor for Model 2000/2500/3000 Heat Pump
    Product #: AEH-151-1103
    Mfg #: R0572000
    3
    3
    R0572100
    AEH-151-1104
    R0572100 1500 JE HEAT PUMP FAN BLADE
    Product #: AEH-151-1104
    Mfg #: R0572100
    3
    3
    R0572200
    AEH-151-1105
    R0572200 2000/2500/3000 JE FAN BLADE
    Product #: AEH-151-1105
    Mfg #: R0572200
    4
    4
    R0572300
    AEH-151-1106
    R0572300 1500 JE HEAT PUMP FAN TOP
    Product #: AEH-151-1106
    Mfg #: R0572300
    4
    4
    R0572400
    AEH-151-1107
    R0572400 2000/2500/3000 JE FAN TOP
    Product #: AEH-151-1107
    Mfg #: R0572400
    5
    5
    R0572500
    AEH-151-1108
    R0572500 1500 JE HEAT PUMP EVAPORATOR COIL/ GUARD
    Product #: AEH-151-1108
    Mfg #: R0572500
    5
    5
    R0572600
    AEH-151-1109
    JE Evaporator and Coil/Guard Model 2000/2500 Heat Pump
    Product #: AEH-151-1109
    Mfg #: R0572600
    5
    5
    R0572700
    AEH-151-1110
    R0572700 3000 JE HEAT PUMP EVAPORATOR COIL/ GUARD
    Product #: AEH-151-1110
    Mfg #: R0572700
    6
    6
    R0572800
    AEH-151-1111
    JE Compressor for Model 1500/2000 Heat Pump
    Product #: AEH-151-1111
    Mfg #: R0572800
    6
    6
    R0572900
    AEH-151-1112
    R0572900 2000 JE HEAT PUMP COMPRESSOR
    Product #: AEH-151-1112
    Mfg #: R0572900
    6
    6
    R0573000
    AEH-151-1113
    JE Compressor for Model 2500 Heat Pump
    Product #: AEH-151-1113
    Mfg #: R0573000
    6
    6
    R0573100
    AEH-151-1114
    JE Compressor for Model 3000 Heat Pump
    Product #: AEH-151-1114
    Mfg #: R0573100

    Wholegoods

    There are no wholegoods available.
