Jandy

LXi™ Polymer Natural Gas Heater 400K BTU Low NOx

Product #:LAR-15-812

Mfg. Part #:LXI400NN

  • This product is obsolete.
  • The superceded product was not found.

Lxi Low NOx 400K BTU Natural Gas Cupro Nickel Polymer Heater, LAR-15-812.

Jandy

LXi™ Polymer Natural Gas Heater 400K BTU Low NOx

Product #:LAR-15-812

Mfg. Part #:LXI400NN

Description

Lxi Low NOx 400K BTU Natural Gas Cupro Nickel Polymer Heaters exceed environmental standards for Low NOx emissions. Lower emissions mean you can enjoy your pool with confidence, knowing your pool equipment is designed with the environment in mind. The Jandy® Pro Series LXi comes automation-ready for easy integration with Jandy® Pro Series AquaLink® controls and other control systems. Built-in freeze protection and exclusive "Maintain Temperature" functions are also available.

Documents

Feature Bullets

  • High-efficiency copper fin heat exchanger is designed to lower operating costs and provide greater savings;
  • The feature rich control panel has a user-friendly backlit display and a simplified menu for ease of operation;
  • Low NOx, fan-assisted combustion and Hot Surface Ignition systems provide maximum performance in all weather conditions;
  • Built-In one-touch automation makes pool-to-spa switching simple;
  • Enables easy connection to Zodiac controls, and other pool/spa automation systems and automatic valve systems;
  • Communicates with the AquaLink® RS family of controls

    • Branch Availability

    content loaded

    Specifications

    • BrandJandy
    • ApplicationIndoor, Outdoor, Pool, Spa
    • Shipping Dimensions43 x 30 x 36 inch
    • BTU Input400000 British thermal unit
    • Cabinet Depth22.3 inch
    • Cabinet Height27.5 inch
    • Cabinet Width32 inch
    • Commercial, Residential, or ProfessionalResidential
    • Control TypeDigital Electric
    • Each Product Weight240 pound
    • Flow Rate Max125 gal/min
    • Flow Rate Min30 gal/min
    • Flue Diameter8 inch
    • Frequency Rating (Hz)60
    • Fuel TypeNatural Gas
    • Green or Energy Efficient ProductTrue
    • Header MaterialPolymer
    • High Altitude ModelTrue
    • Master Carton Quantity1
    • Minimum Sell Quantity1
    • Pallet Quantity1
    • PhaseSingle
    • Tubing MaterialCupro Nickel
    • Voltage120V, 240V
    • UPC Code052337010689

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

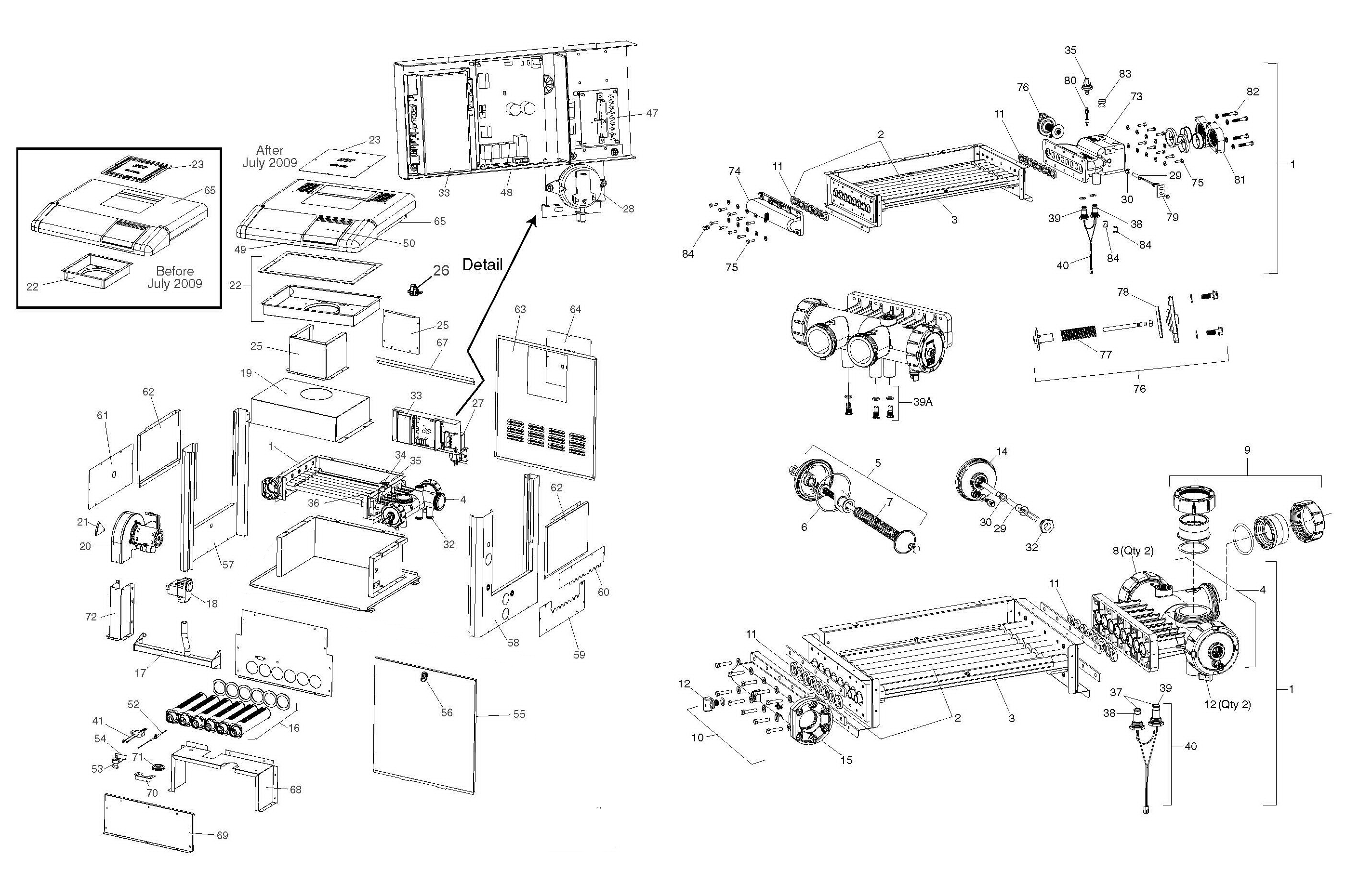

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    R0453303
    LAR-151-4800
    Complete Heat Exchanger for Model 250 LXi™ Low NOx Heater
    Product #: LAR-151-4800
    Mfg #: R0453303
    1
    1
    R0453305
    LAR-151-4802
    R0453305 400K LXI POLYMER/CU HEAT EXCHANGER
    Product #: LAR-151-4802
    Mfg #: R0453305
    2
    2
    R0453403
    LAR-151-1850
    Tube Assembly with Hardware and Gaskets
    Product #: LAR-151-1850
    Mfg #: R0453403
    2
    2
    R0453405
    LAR-151-4703
    Copper Tube Assembly with Hardware and Gaskets
    Product #: LAR-151-4703
    Mfg #: R0453405
    2
    2
    R0477003
    LAR-151-1993
    LXi Heat Exchanger Tube Assembly for Model 250 Low NOx Pool/Spa Heater
    Product #: LAR-151-1993
    Mfg #: R0477003
    2
    2
    R0477005
    LAR-151-2009
    LXi Heat Exchanger Tube Assembly for Low NOx Pool/Spa Heater
    Product #: LAR-151-2009
    Mfg #: R0477005
    3
    3
    R0453503
    LAR-151-1819
    Heat Exchanger End Baffles for LXi™ 250 Low NOx Pool/Spa Heater
    Product #: LAR-151-1819
    Mfg #: R0453503
    3
    3
    R0453505
    LAR-151-3505
    Heat Exchanger End Baffle for LXi™ 400 Low NOx Heater
    Product #: LAR-151-3505
    Mfg #: R0453505
    4
    4
    R0453600
    LAR-151-3600
    Polymer Front Header with Hardware and Gaskets
    Product #: LAR-151-3600
    Mfg #: R0453600
    5
    5
    R0453700
    LAR-151-1137
    Bypass Assembly for LXi™ Low NOx Heater
    Product #: LAR-151-1137
    Mfg #: R0453700
    6
    6
    R0453800
    LAR-151-1790
    Bypass Assembly with O-Ring
    Product #: LAR-151-1790
    Mfg #: R0453800
    7
    7
    R0453900
    LAR-151-1205
    Adjustable Bypass Spring for LXi™ Low NOx, LRZM, and LRZE Heaters
    Product #: LAR-151-1205
    Mfg #: R0453900
    8
    8
    R0454000
    LAR-151-4540
    3" Coupling Nut Kit with O-Ring Set of 2
    Product #: LAR-151-4540
    Mfg #: R0454000
    10
    10
    R0454200
    LAR-151-1206
    Rear Header with Hardware and Gaskets
    Product #: LAR-151-1206
    Mfg #: R0454200
    11
    11
    R0454300
    LAR-151-1202
    Header Gasket Assembly Set of 16
    Product #: LAR-151-1202
    Mfg #: R0454300
